Custom clear acrylic double-sided tape — transparent, residue-free.
High-clarity acrylic bonding tape on a red PET liner — from ultra-thin transfer film for invisible bonds on glass and metal, to a stretchable acrylic-foam core that cushions, seals and replaces screws. We make our own acrylic adhesive, then coat, slit and die-cut to your spec.
Thickness0.05 – 3.0 mm
LinerRed PET (clear)
AdhesiveClear acrylic
Temp.up to ~150 °C
Clear double-sided tape, made to order
An invisible bond — engineered to your surface.
Clear acrylic double-sided tape disappears into the joint: a water-clear acrylic that wets out on glass, acrylic, metal and painted surfaces for a bond with no visible edge. Because we run the full chain — from acrylic resin to finished roll — we tune clarity, tack and temperature instead of reselling a stock item.
Choose a thin unsupported transfer film for flat, smooth surfaces and the lowest profile, or a high-clarity acrylic-foam core when you need to fill gaps, follow a curve, damp vibration or seal out water. Both lift away cleanly, so they’re safe on car paint and finished surfaces.
Own acrylic adhesiveWe coat our own clear PSA — optical clarity, tack and temperature tuned in-house, not bought as a stock laminate.
Clear & residue-freeWater-clear bond with no visible edge; removes cleanly from glass, paint and finished surfaces.
Slit & die-cut to shapeSlit from 3 mm narrow rolls up to wide; plus die-cut coins, squares and custom pads on a red liner.
Product range
Clear acrylic double-sided tapes.
Six core options — each customizable on thickness, tack, width, liner and format. Not sure which fits? Send your surfaces and we’ll recommend one.
Unsupported · red PET liner
Clear acrylic transfer tape
Pure acrylic on a red PET liner — ultra-thin, water-clear and conformable for the lowest-profile bond on flat, smooth surfaces.
Carrier: none · Adhesive: clear acrylic
Thickness: 0.05–0.5 mm
Thickness: 0.05–0.5 mm
Acrylic foam · high-bond

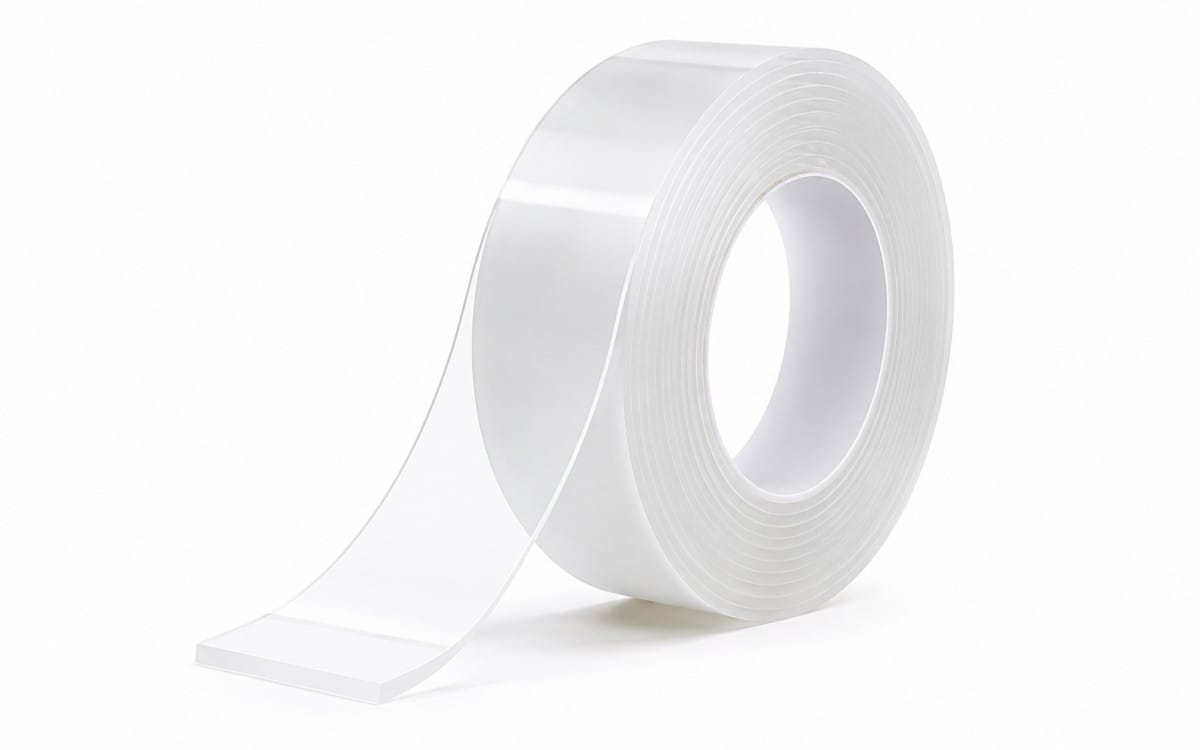

Clear acrylic foam (high-bond) tape
A stretchable, high-clarity acrylic-foam core that fills gaps, follows curves, cushions and seals — replaces rivets and screws on trims and panels.
Carrier: acrylic foam · Adhesive: modified acrylic
Thickness: 0.5–3.0 mm
Thickness: 0.5–3.0 mm
Ultra-thin · die-cut

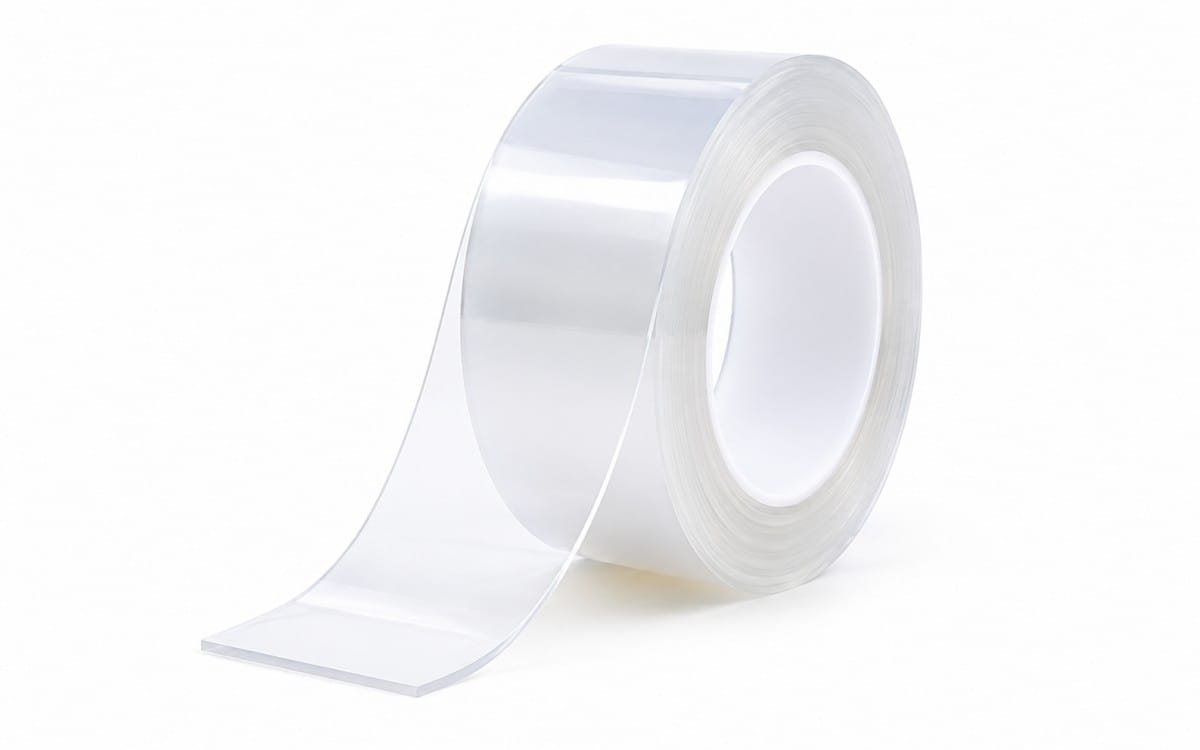

Ultra-thin electronics-grade tape
0.1–0.3 mm high-clarity film with good insulation for screens, nameplates, batteries, backlights and PCB parts — precision die-cut.
Thickness: 0.1–0.3 mm · high insulation
Format: rolls & die-cut parts
Format: rolls & die-cut parts
Automotive · weatherable

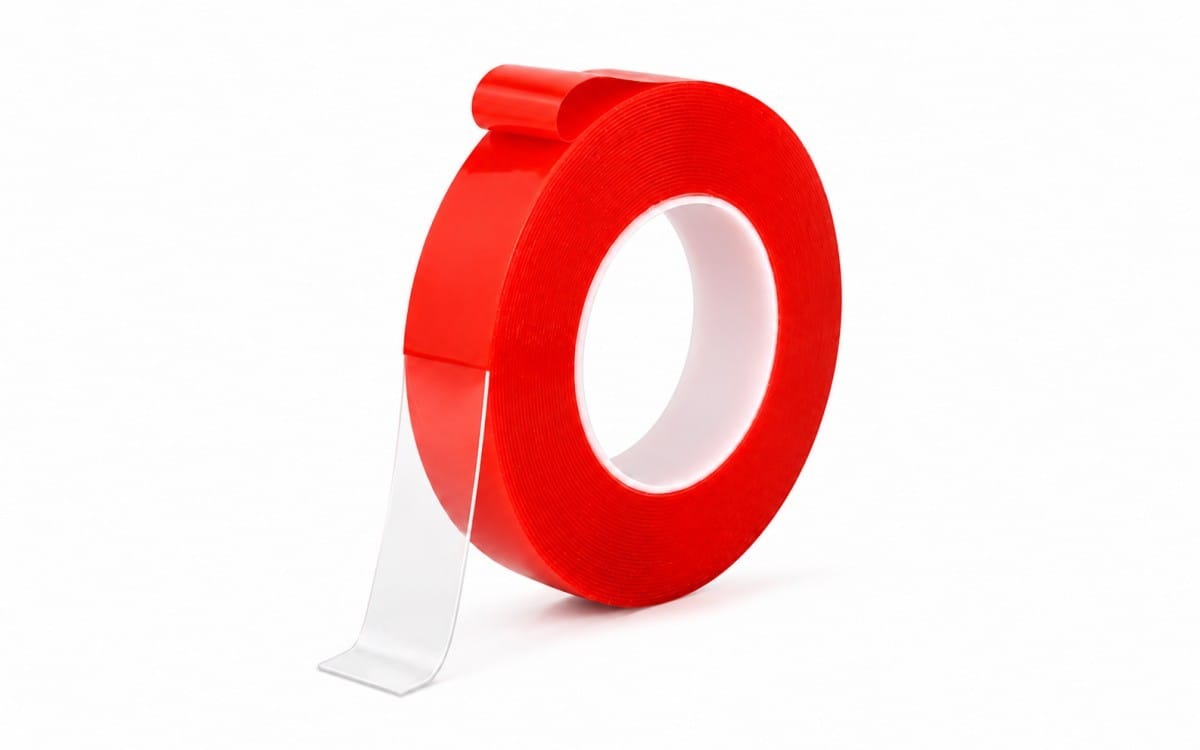

Automotive clear (red film) tape
Heat-, UV- and water-resistant clear acrylic for car paint and ABS — emblems, window trim, pedals and accessories; lifts off without damaging paint.
Temp: –40 to ~130 °C · UV / waterproof
Adhesive: clear acrylic (paint-safe)
Adhesive: clear acrylic (paint-safe)
Thick · max load

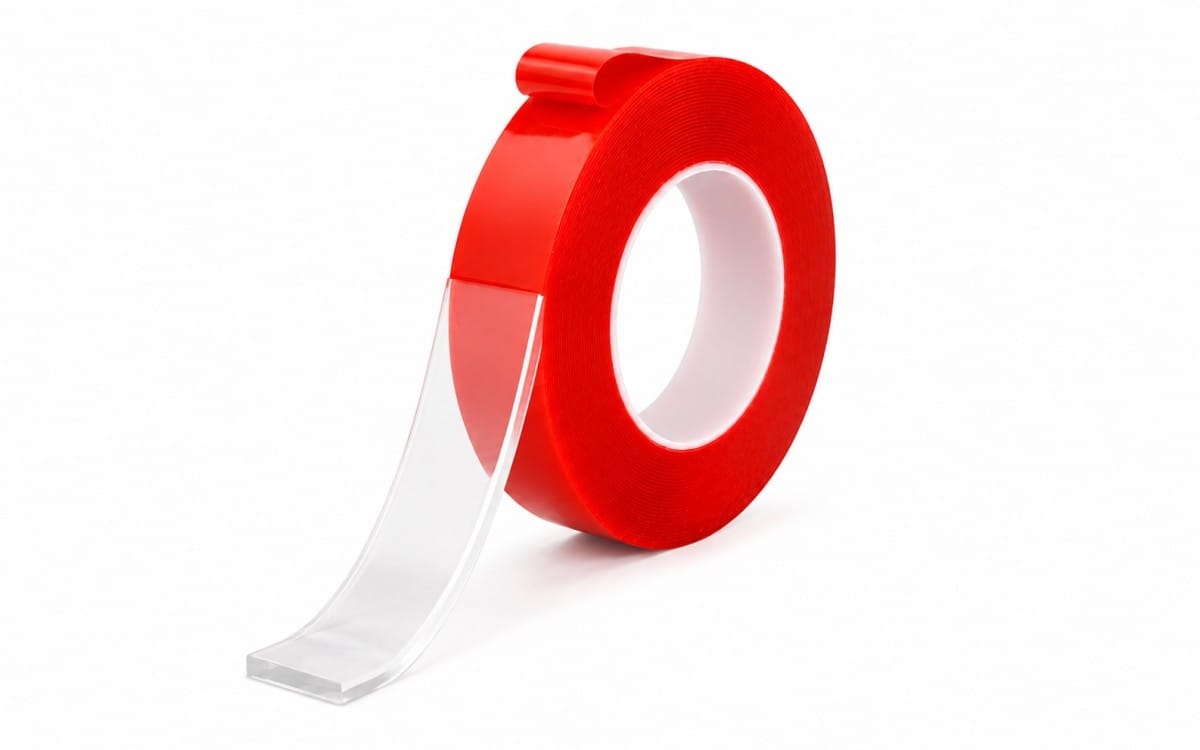

Heavy-duty / outdoor tape
2.0–3.0 mm acrylic foam that bridges gaps and resists weather and UV — heavy shelves, outdoor signage, racks and door / window seals.
Thickness: 2.0–3.0 mm · gap-filling
Use: outdoor / load-bearing
Use: outdoor / load-bearing
Converted parts

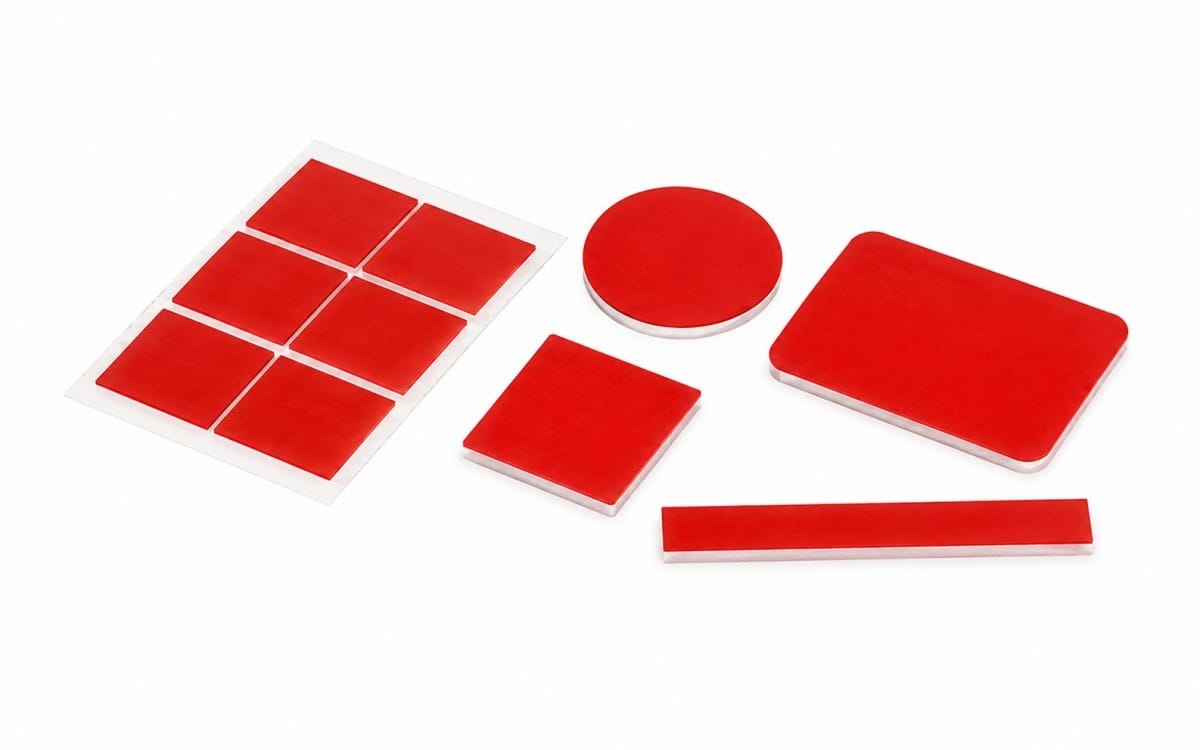

Die-cut pads & narrow rolls
Coins, squares and custom shapes on a red liner for pre-assembly, plus 3–5 mm narrow precision rolls for repair and small parts.
Shapes: coins / squares / custom · on liner
Narrow rolls: 3–5 mm
Narrow rolls: 3–5 mm
Specifications
Compare the options.
Representative ranges to help you shortlist — exact values are confirmed on each product’s data sheet and tuned to your application.
| Type | Carrier | Adhesive | Thickness | Temp. resistance* | Clarity | Typical use |
|---|---|---|---|---|---|---|
| Transfer (unsupported) | None | Clear acrylic | 0.05–0.5 mm | –30 to 150 °C | High · water-clear | Nameplates, screens, emblems, signage on flat smooth surfaces |
| Acrylic foam (high-bond) | Acrylic foam | Modified acrylic | 0.5–3.0 mm | –40 to 120 °C | Clear / translucent | Trim, panels, gap-fill, sealing, vibration damping, outdoor |
| Ultra-thin electronics | None / PET | Acrylic (insulating) | 0.1–0.3 mm | –30 to 150 °C | High | Screens, nameplates, battery, backlight, PCB — die-cut |
| Automotive clear | None / foam | Acrylic (UV / weather) | 0.2–2.0 mm | –40 to 130 °C | High | Emblems, window trim, pedals — paint-safe removal |
| Heavy-duty / outdoor | Acrylic foam | Modified acrylic | 2.0–3.0 mm | –40 to 120 °C | Clear / translucent | Heavy shelves, outdoor signage, racks, door / window seals |
| Die-cut / narrow rolls | Per spec | Clear acrylic | 0.05–3.0 mm | per type | High | Pre-assembly pads, repair, small décor (3–5 mm rolls) |
*Representative typical values for shortlisting — high-temperature, weatherable and removable formulations are available. Final specs are confirmed per product and against your substrates.
How it’s built
The anatomy of a clear acrylic tape.
A supported clear tape is a sandwich: clear acrylic on both faces of a high-clarity acrylic-foam core, with a red PET release liner so the roll won’t stick to itself. A transfer tape drops the core — pure acrylic on a liner — for the thinnest, most invisible bond line.
Red PET release liner — clear, easy-tear, peels away at application
Clear acrylic adhesive — bonding side A
Acrylic foam core — high-clarity, stretchable (omitted on transfer tape)
Clear acrylic adhesive — bonding side B
Red PET release liner — protects side B until use
Where it’s used
Applications.
Nameplates & emblems
Bonding metal and plastic plates, logos and badges — no visible edge.
Phone & screen repair
Ultra-thin, die-cut frames for screens and modules.
Automotive trim & badges
Emblems, window trim and accessories — paint-safe, weatherable.
Signage & light boxes
Acrylic letters, posters and panels — clear, fastener-free.
Mirrors & acrylic panels
Bonding mirrors and clear sheets where the line must disappear.
Home organization
Hooks, shelves and frames on walls and tile — removable, no drilling.
Electronics
Battery, backlight and PCB parts — thin, insulating, die-cut.
Sealing & outdoor
Door / window seals and outdoor mounts — waterproof, UV-resistant.
OEM / ODM
What you can customize.
As a source factory we build to your spec, not a fixed catalogue — low MOQ on custom runs, free samples and a quote within one business day.
ConstructionUnsupported clear transfer, or a high-clarity acrylic-foam core.
AdhesiveClear acrylic — permanent, removable, or high-temperature / weatherable.
ThicknessFrom 0.05 mm transfer film up to 3.0 mm acrylic foam.
Width & lengthSlit 3–50 mm (narrow precision to wide); 10–100 m rolls or custom.
LinerRed PET (clear, easy-tear) or white PET / paper liner.
Die-cut partsCoins, squares and custom pads on a liner for pre-assembly.
Narrow precision rolls3–5 mm rolls for screen repair and small parts.
Private labelYour logo, core, packaging and print — full OEM / ODM supply.
ComplianceRoHS, REACH and Prop 65 options; third-party reports (SGS / Intertek / BV) on request.
Choose the right tape
Three things that decide which one you need.
01 · Surface
Flat, or uneven and curved?
Flat, smooth surfaces (glass, metal, acrylic) take a thin transfer or ultra-thin film for an invisible line. Uneven, curved or gapped surfaces need an acrylic-foam core to fill and conform.
02 · Visibility
Does the bond need to disappear?
Red-liner clear acrylic is water-clear and leaves no visible edge on glass and acrylic. Choose transfer for the thinnest line, or foam where you also need cushioning and gap-fill.
03 · Environment
Indoor, automotive or outdoor?
Indoor décor uses a standard clear grade. For car paint and outdoor signage choose a UV- and water-resistant weatherable grade; for electronics choose a high-temperature, insulating grade.
Need the technical data sheet?
Get full specs — clarity, peel / shear, thickness, temperature and liner — plus free samples to test on your own substrates.
Buyer FAQ
Clear double-sided tape questions.
The things buyers ask before ordering. Don’t see yours? Send it with your spec.
What’s your MOQ for custom clear double-sided tape?
MOQ depends on the construction, thickness and whether the size/adhesive is custom, but it’s low for a source factory — tell us the type, thickness, width and target quantity and we’ll confirm the exact MOQ with your quote.
Can I get free samples first?
Yes. We ship free samples so you can test clarity and hold on your own substrates before committing — request them with your spec and we’ll send the matching constructions.
Transfer (unsupported) or acrylic-foam — which do I need?
Use a thin unsupported transfer film on flat, smooth surfaces for the lowest, most invisible line. Use a high-clarity acrylic-foam core when you need to fill a gap, follow a curve, cushion or seal — it’s also the stronger, structural option.
Will it stay invisible on glass and clear acrylic?
Our clear acrylic is water-clear and wets out without a visible edge on glass and acrylic. For the most invisible result use a thin transfer film; a foam core is slightly thicker but still clear or translucent.
How thick should I choose?
Thin transfer / ultra-thin (0.05–0.3 mm) suits flat, well-matched surfaces and low-profile bonds; 0.5–1.5 mm foam handles slight unevenness and car paint; 2.0–3.0 mm foam fills bigger gaps, cushions and holds heavier loads outdoors.
Can it be removed without residue or paint damage?
Our acrylic foam grades are designed to lift away cleanly from finished surfaces and car paint when removed as directed. For a fully repositionable bond, ask for a removable adhesive.
Do you offer high-temperature, UV and waterproof grades?
Yes — weatherable grades resist UV and water for automotive and outdoor use, and high-temperature, insulating grades suit electronics. Tell us the temperature and exposure and we’ll match it.
Can you die-cut shapes and supply narrow rolls?
Yes — we kiss-cut coins, squares and custom pads on a red liner for automated placement, and slit narrow precision rolls down to 3–5 mm for repair and small parts.
Red liner or white liner — what’s the difference?
The red PET liner is clear, easy to tear and the most common choice for die-cutting, cross-border and automotive use. A white PET / paper liner is a lower-cost option for general home use.
Do you offer private label / OEM?
Yes — your logo, core, liner print and packaging. We supply OEM / ODM for distributors and brands worldwide.
What’s the lead time?
Samples typically ship within a day or two; production lead time depends on quantity and construction and is confirmed on your quote.
What information should I send to get a recommendation?
Tell us: the two surfaces, whether they’re flat or curved and any gap, the load and whether it must be removable, the temperature / outdoor exposure, how clear it must be, and the width, format and quantity. With that we’ll recommend a construction, send free samples and quote.
Get a custom clear double-sided tape quote.
Send your surfaces, thickness, width and quantity — we’ll recommend a construction, send free samples and quote within one business day.
